Colorize Mask

toolcolorizemask

A tool for quickly coloring line art, the Colorize Mask Editing tool can be found next to the gradient tool on your toolbox.

This feature is technically already in 3.1, but disabled by default because we had not optimized the filling algorithm for production use yet. To enable it, find your krita configuration file, open it in notepad, and add „disableColorizeMaskFeature=false“ to the top. Then restart Krita. Its official incarnation is in 4.0.

Usage

This tool works in conjunction with the colorize mask, and the usage is as follows:

For this example, we’ll be using the ghost lady also used to explain masks on the basic concepts page.

../../_images/Krita_4_0_colorize_mask_usage_01.png

This image has the line art for the lady separated from the background, and what’s more, the background is made up of two layers: one main and one for the details.

First, select the colorize mask editing tool while having the line art layer selected. mouseleft the canvas will add a colorize mask to the layer. You can also mouseright the line art layer, and then Add ‣ Colorize Mask. The line art will suddenly become really weird, this is the prefiltering which are filters through which we put the line art to make the algorithm easier to use. The tool options overview below shows which options control that.

../../_images/Krita_4_0_colorize_mask_usage_02.png

Now, you make strokes with brush colors, press Update in the tool options, or tick the last icon of the colorize mask properties. In the layer docker, you will be able to see a little progress bar appear on the colorize mask indicating how long it takes. The bigger your file, the longer it will take.

../../_images/Krita_4_0_colorize_mask_usage_03.png

We want to have the blue transparent. In the tool options of the colorize editing tool you will see a small palette. These are the colors already used. You can remove colors here, or mark a single color as standing for transparent, by selecting it and pressing „transparent“. Updating the mask will still show the blue stroke, but the result will be transparent:

../../_images/Krita_4_0_colorize_mask_usage_04.png

Because the colorize mask algorithm is slow, and we only need a part of our layer to be filled to fill the whole ghost lady figure, we can make use of Limit to layer bounds. This will limit Colorize Mask to use the combined size of the line art and the coloring key strokes. Therefore, make sure that the colorizing keystrokes only take up as much as they really need.

../../_images/Krita_4_0_colorize_mask_usage_05.png

Now the algorithm will be possibly a lot faster, allowing us to add strokes and press Update in rapid succession:

../../_images/Krita_4_0_colorize_mask_usage_06.png

To see the final result, disable Edit Key Strokes or toggle the second to last icon on the colorize mask.

../../_images/Krita_4_0_colorize_mask_usage_07.png

If you want to edit the strokes again, re-enable Edit Key Strokes.

Now, the colorize mask, being a mask, can also be added to a group of line art layers. It will then use the composition of the whole group as the line art. This is perfect for our background which has two separate line art layers. It also means that the colorize mask will be disabled when added to a group with pass-through enabled, because those have no final composition. You can recognize a disabled colorize mask because its name is stricken through.

To add a colorize mask to a group, select the group and mouseleft the canvas with the Colorize Mask editing tool, or mouseright the layer to Add ‣ Colorize Mask.

../../_images/Krita_4_0_colorize_mask_usage_08.png

Now, we add strokes to the background quickly. We do not need to use the Limit to Layer Bounds because the background covers the whole image.

../../_images/Krita_4_0_colorize_mask_usage_09.png

For the record, you can use other brushes and tools also work on the colorize mask as long as they can draw. The Colorize Mask Editing tool is just the most convenient because you can get to the algorithm options.

Out final result looks like this:

../../_images/Krita_4_0_colorize_mask_usage_10.png

Now we are done, mouseright the colorize mask and Convert ‣ to Paint Layer. Then, Layer ‣ Split ‣ Split Layer. This will give separate color islands that you can easily edit:

../../_images/Krita_4_0_colorize_mask_usage_11.png

This way we can very quickly paint the image. Due to the colorize mask going from the first image to the following took only 30 minutes, and would’ve taken quite a bit longer.

../../_images/Krita_4_0_colorize_mask_usage_12.png

The colorize masks are saved to the .kra file, so as long as you don’t save and open to a different file format, nor convert the colorize mask to a paintlayer, you can keep working adjust the results.

Tool Options

Update

Run the colorize mask algorithm. The progress bar for updates on a colorize mask shows only in the layer docker.

Edit key strokes

Put the mask into edit mode. In edit mode, it will also show the ‚prefiltering‘ on the line art, which is for example a blur filter for gap closing.

Show output

Show the output of the colorize mask. If Edit key strokes is active, this will be shown semi-transparently, so it will be easy to recognize the difference between the strokes and the output.

../../_images/Krita_4_0_colorize_mask_show_output_edit_strokes.png

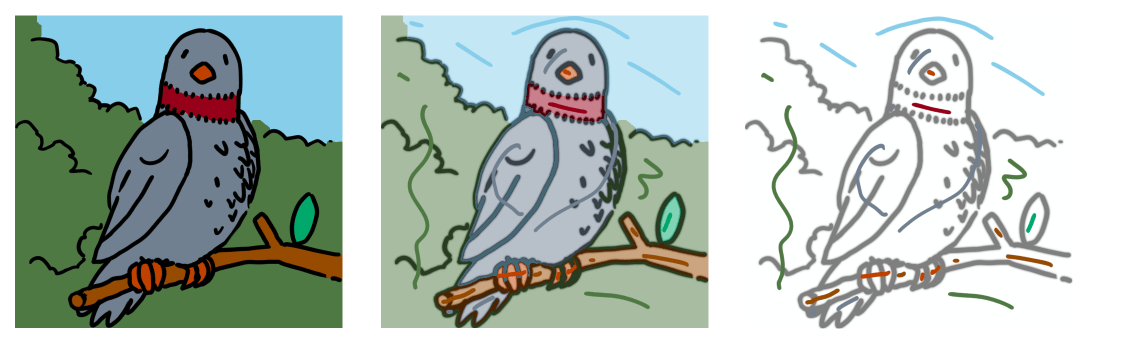

On the Left: Show Output is on, Edit Key Strokes is off. In the Middle: Show Output and Edit Key Strokes are on. On the Right: Show Output is off and Edit Key Strokes is on.

Limit to layer bounds

Limit the colorize mask to the combined layer bounds of the strokes and the line art it is filling. This can speed up the use of the mask on complicated compositions, such as comic pages.

Edge detection

Activate this for line art with large solid areas, for example shadows on an object. For the best use, set the value to the thinnest lines on the image. In the image below, note how edge detection affects the big black areas:

../../_images/Krita_4_0_colorize_mask_edge_detection.png

From left to right: an example with big black shadows on an object but no edge detection, the same example without the edit key strokes enabled. Then the same example with edge detection enabled and set to 2px, and that same example without edit key strokes enabled.

Gap close hint

While the algorithm is pretty good against gaps in contours, this will improve the gap recognition. The higher this value is, the bigger the gaps it will try to close, but a too high value can lead to other errors. Note how the prefiltered line art (that’s the blurry haze) affects the color patches.

../../_images/Krita_4_0_colorize_mask_gap_close_hint.png

On the Left: Gap close hint is 0px. In the Middle: Gap close hint is 15px (the lines are 10px). On the Right: Gap close hint is 275px.

Clean up

This will attempt to handle messy strokes that overlap the line art where they shouldn’t. At 0 no clean up is done, at 100% the clean-up is most aggressive.

../../_images/Krita_4_0_colorize_mask_clean_up.png
Key strokes

This palette keeps track of the colors used by the strokes. This is useful so you can switch back to colors easily. You can increase the swatch size by hovering over it with the mouse, and doing Ctrl + mousescroll.

Transparent

This button is under the keystrokes palette, you can mark the selected color to be interpreted a ‚transparent‘ with this. In the clean-up screenshot above, cyan had been marked as transparent.

Layer properties

The colorize mask layer has four properties. They are all the buttons on the right side of the colorize mask layer:

Show output

show-output The show output icon allows you to toggle whether you’ll see the output from the colorize algorithm.

Lock

lock-icon This icon stops the mask from being edited.

Edit key strokes

edit-strokes This icon shows whether the colorize mask is in edit mode. In edit mode it’ll show the strokes, and the output will be semi-transparent.

Update

update-icon This icon will force the colorize mask to update, even when you’re in a different tool.

Bemerkung

Colorize masks cannot be animated.
